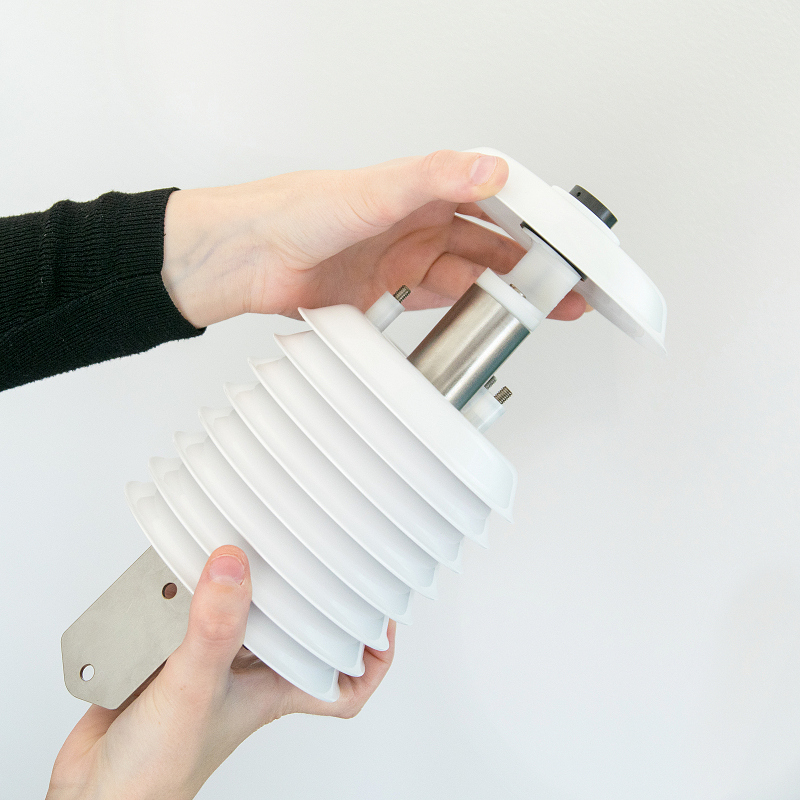

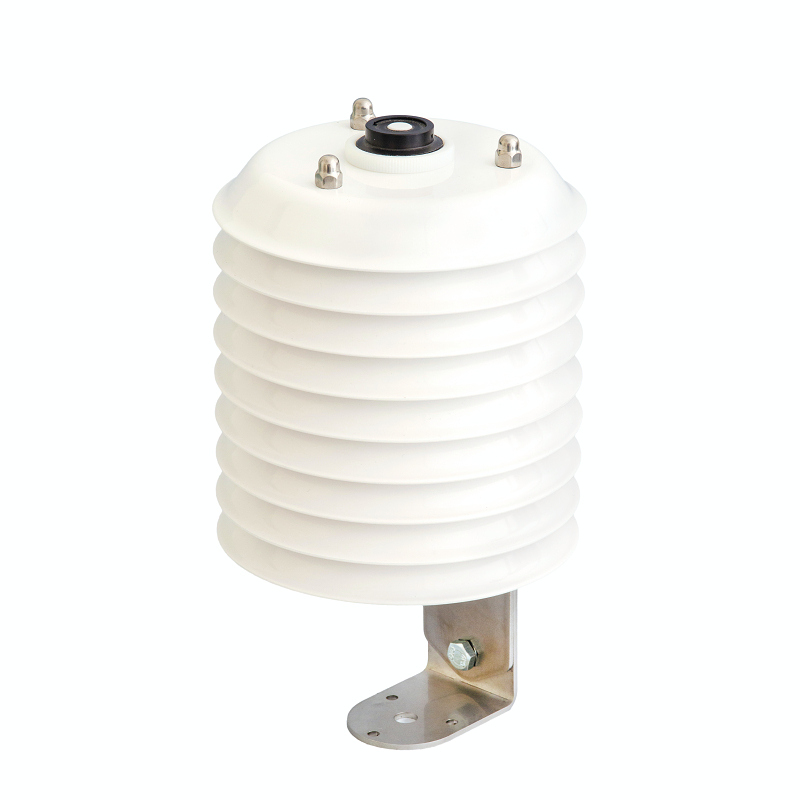

Model : RTHi/QTHi (대기온습도/일사 or 퀀텀 측정)제품(RTHi/QTHi)카탈로그
-
Point. 01
-
대기온습도 및 일사량 or 퀀텀 측정, 내부 데이타로거
-
Point. 02
-
장기간 모니터링 및 데이터 저장
-
Point. 03
-
프로그램 분석
제품사양
Measuring intervals 3 sec to 4 hrs Memory capacity with measuring interval 1 hour ca 4 years Battery life with measuring interval 1 hour ca 2 years Temperature accuracy ± 0.15˚C Radiation accuracy ± 5% Relative humidity accuracy ± 2% RH Size (diameter x length) 120 x 200 mm Weight 685 g Operating environment temperature -40 to 60˚C Operating environment humidity 0 to 100% -
-

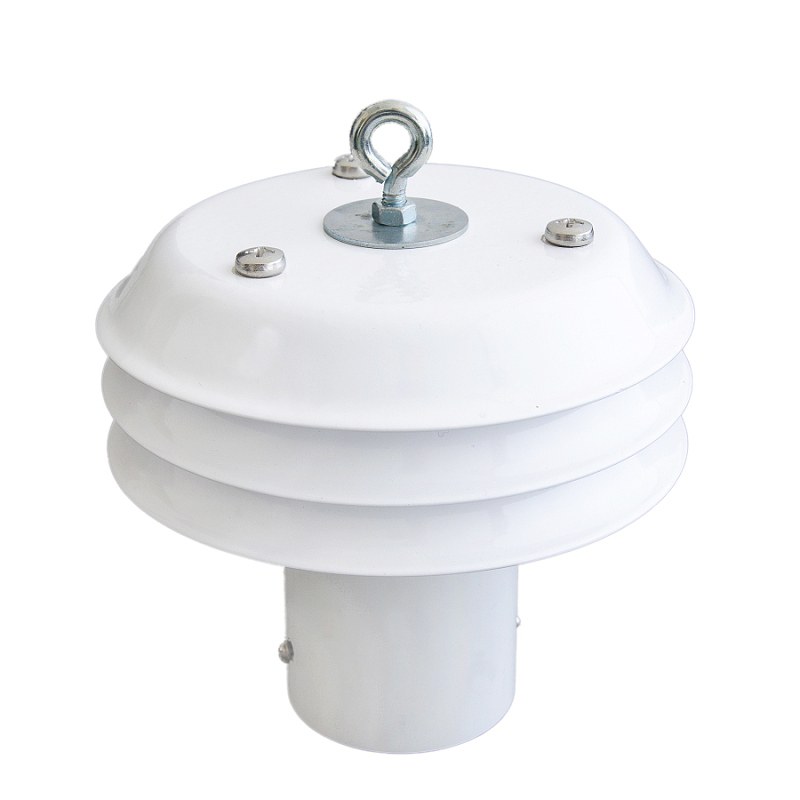

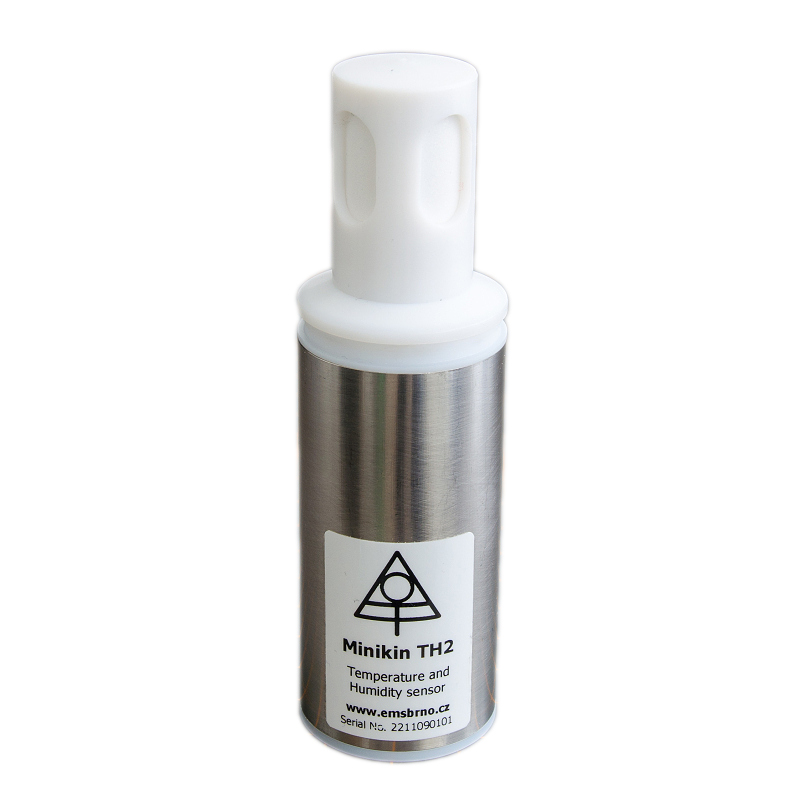

Model : TH2/R (대기온습도 측정)TH2/R 카탈로그
-
Point. 01
-
대기온습도 측정, 내부 데이타로거
-
Point. 02
-
장기간 모니터링 및 데이터 저장
-
Point. 03
-
프로그램 분석
제품사양
Measuring intervals 30 sec to 4 hrs Memory capacity with measuring interval 1 hour ca 6 years Battery life with measuring interval 1 hour ca 5 years Temperature accuracy ± 0.2˚C Relative humidity accuracy ± 2% RH Protection rating IP60 Protection rating when mounted in radiation shield IP63 Size (diameter x length) 30 x 103 mm Weight 79 g Operating environment temperature -40 to 60˚C Operating environment humidity 0 to 100% -
-

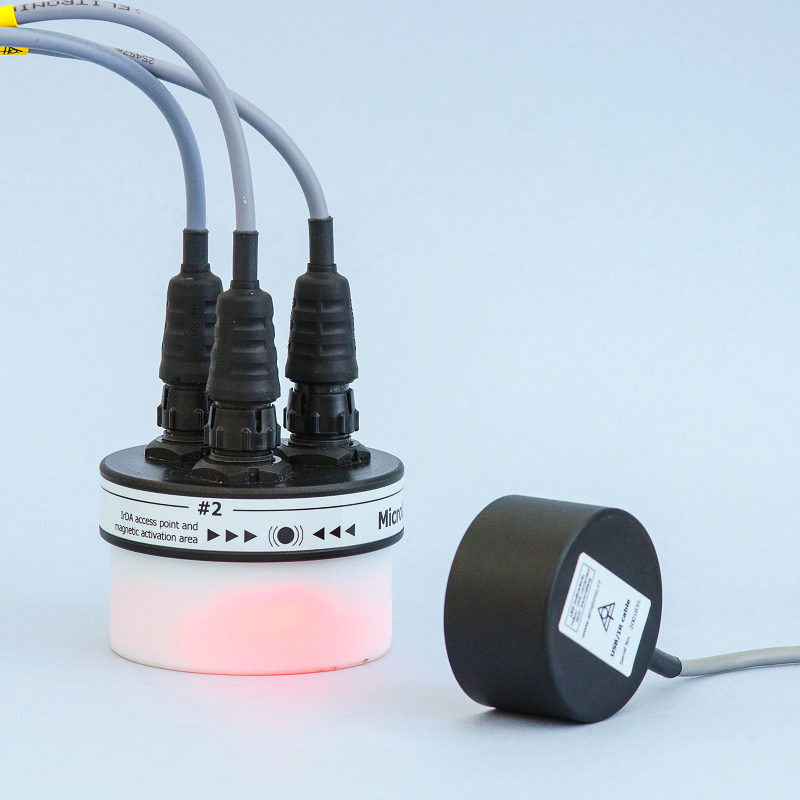

토양수분 측정 장치(VWC)
-
Point. 01
-
3개 토양수분 센서, 미니데이타로거에 연결
-
Point. 02
-
장기간 토양수분(VWC) 모니터링 및 데이터 저장
-
Point. 03
-
프로그램 분석
제품사양
SWC measuring range 0% VWC to saturation SWC resolution 0.1% VWC Measuring intervals 3 sec to 4 hrs Memory capacity with measuring interval 1 hour ca 5 years Battery life with measuring interval 1 hour ca 2 years Protection rating IP68 Operating environment temperature -40 to 60˚C Operating environment humidity 0 to 100% -
-

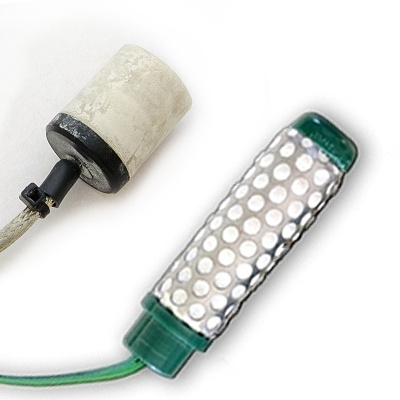

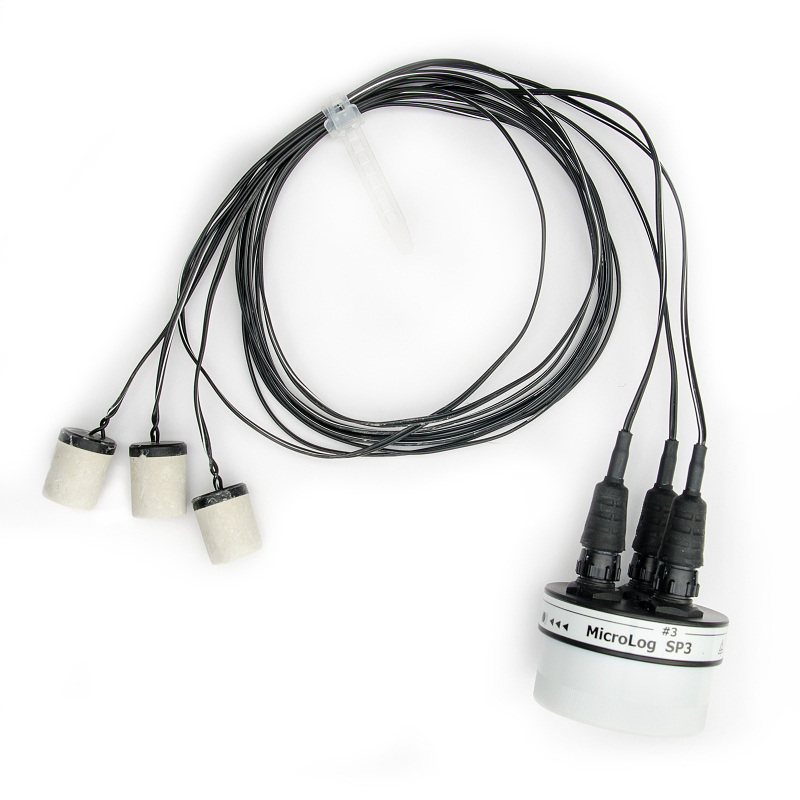

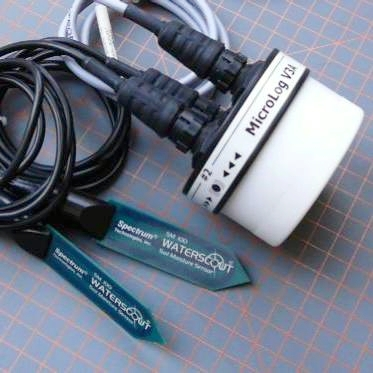

토양수분 측정 장치(수분 포텐셜)
-
Point. 01
-
Gypsum 및 Watermark 토양수분 센서, 미니데이타로거에 연결
-
Point. 02
-
장기간 토양수분(수분 포텐셜) 모니터링
-
Point. 03
-
프로그램 분석
제품사양
Memory size 256 kB Measuring range 0 to 35 kOhm (0 to ?1.44 MPa) Resolution 16 bits Measuring intervals 10 min to 4 hrs Memory capacity with measuring interval 1 hour ca 1.5 years Battery life with measuring interval 1 hour ca 2 years Internal temperature accuracy ± 0.3˚C Protection rating IP68 Size of datalogger (diameter x length) 70 x 52 mm (incl. connectors) Weight 110 g Operating temperature -40 to 60˚C Operating humidity 0 to 100% -
-

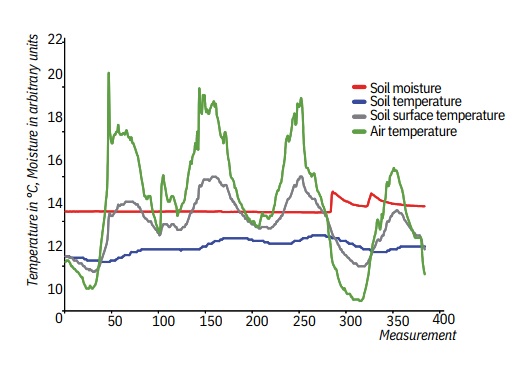

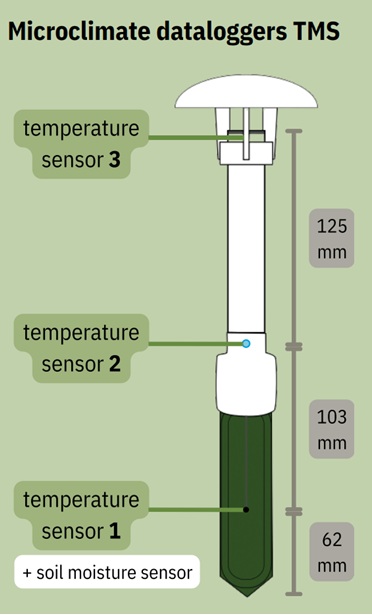

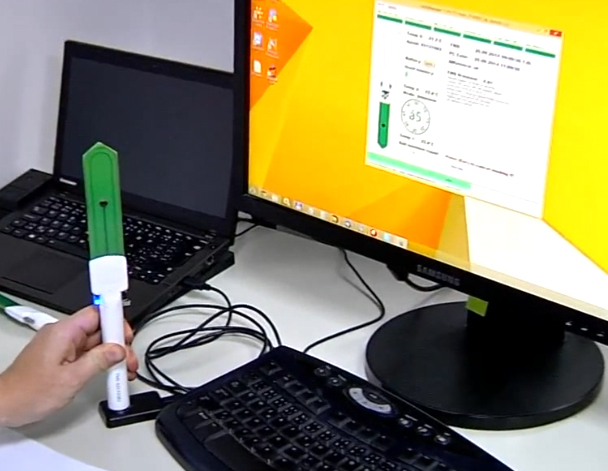

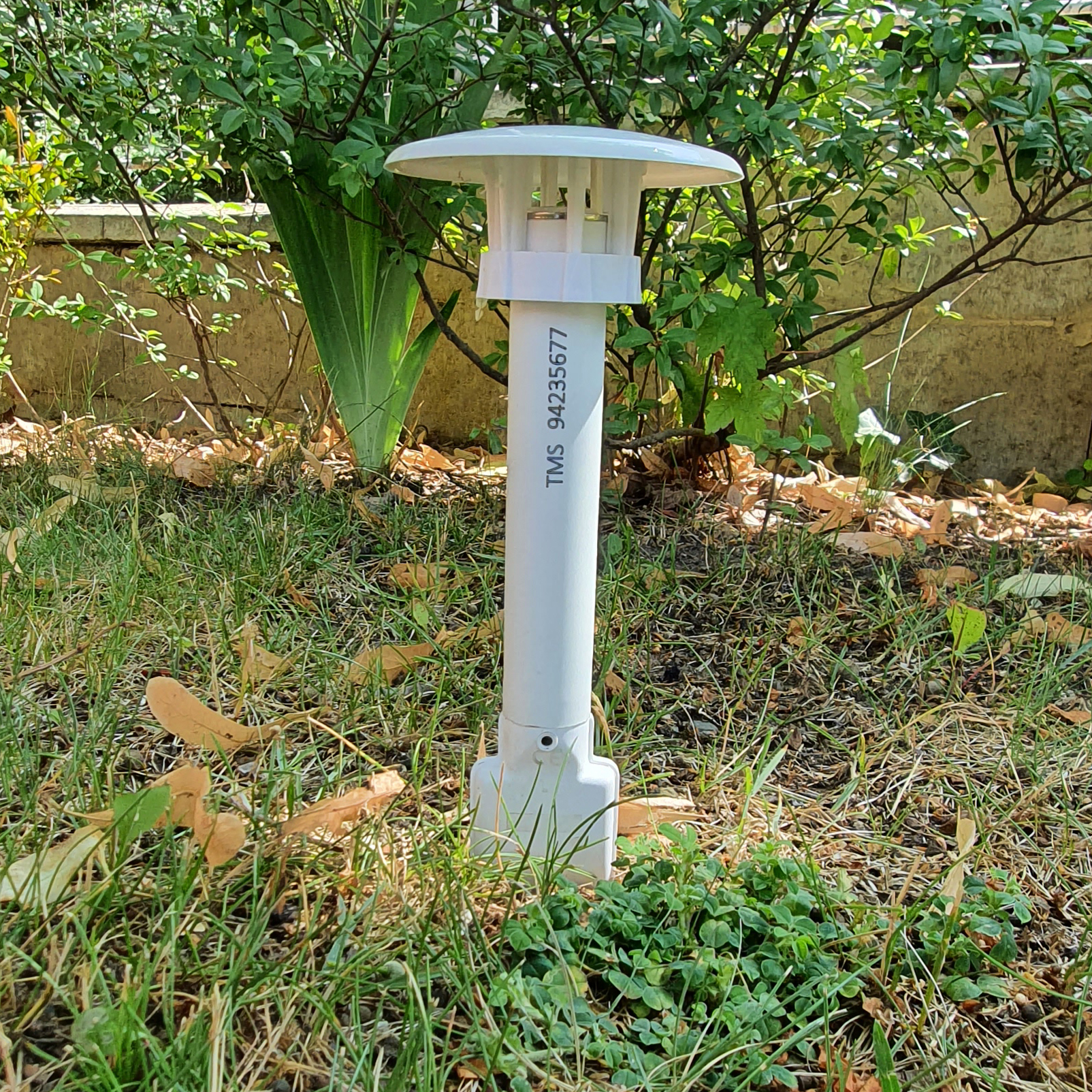

토양수분/온도/대기온도 측정장치카탈로그 다운
-
Point. 01
-
저렴한 가격의 토양온습도 및 표면온도, 대기온도 측정 및 저장로거
-
Point. 02
-
10년간 교체없이 배터리 사용 (15분 간격 측정시)
-
Point. 03
-
500,000 데이터 포이트 저장용량(15분 간격 측정시 14년 사용)
-
Point. 04
-
20, 30, 45cm 튜브 길이 선택 가능 (기본: 12cm)
제품사양
Temperature sensors Range : -40 ~ +60 °C / Resolution: 0.0625 °C / Accuracy: ±0.5 °C. Soil moisture sensor Time Domain Transmission(TDT) 방식. Accuracy: ± 1%. Battery Lithium3.6V, 2600 mAh, a 10+ year lifetime. The capacity Dataloggers: 32 Mbit / Over 500 000 values can be stored
Measurement: up to 14 years of measurements every 15 minutes.Real-time An accuracy of +/-20 ppm (±20 sec/month, or ±3 min/year). Size/Weight 29 cm / 108 g -

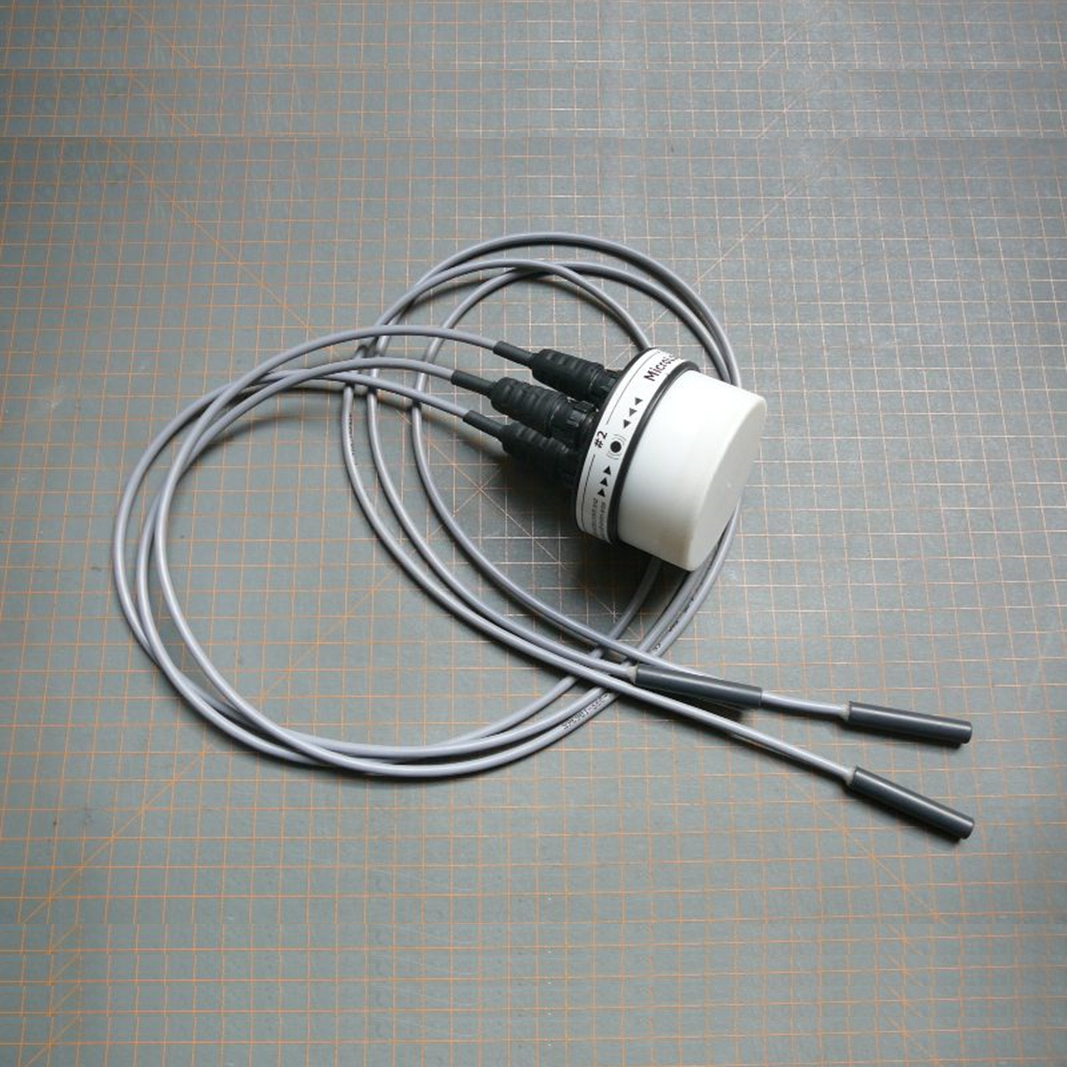

토양온도 측정 장치
-
Point. 01
-
3개 토양온도 센서, 미니데이타로거에 연결
-
Point. 02
-
장기간 토양온도 모니터링 및 데이터 저장
제품사양
Measuring range -40 to 60˚C Measuring intervals 5 min to 4 hrs Memory capacity with measuring interval 1 hour ca 5 years Battery life with measuring interval 1 hour ca 2 years Accuracy ± 0.15˚C Protection rating IP68 Operating environment temperature -40 to 60˚C Operating environment humidity 0 to 100% -
